Gardner Denver

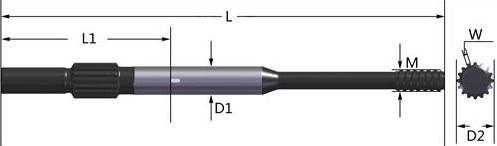

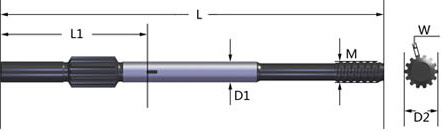

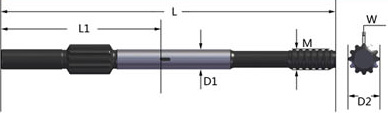

| Thread (Not M) | Length （L）mm | Straight water distribution sleeve Diameter (D1)mm | Water hole position Set L1mm | Spline diameter (D2)mm | Spline width (W)mm | |
| LHS Product Model QW38-915T51 | ||||||
 | T51 | 915 | φ50.8 | 394 | 76.2 | 8*14 |
| Supporting models | ||||||
| Gardner-Denver HPR2 | ||||||
| LHS Product Model QW83-1040T51 | ||||||
 | T51 | 1040 | φ70 | 395 | 86.4 | 8*16 |
| Supporting models | ||||||
| Gardner-Denver HPR2 | ||||||
| LHS Product Model QW138-725T45 | ||||||
 | T45 | 725 | φ44.4 | 345 | 65.7 | 8*12 |
| Supporting models | ||||||
| Gardner-Denver HPR1H | ||||||
