Tamrock HL

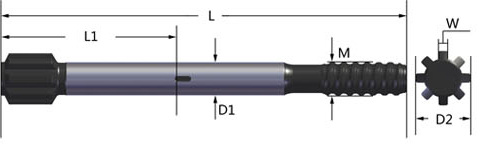

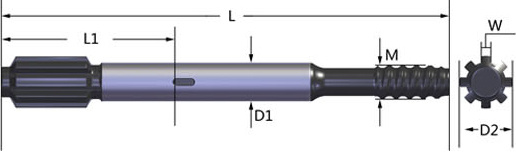

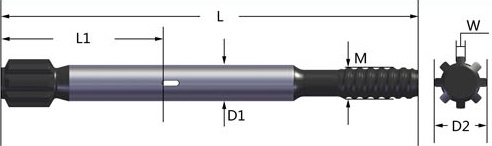

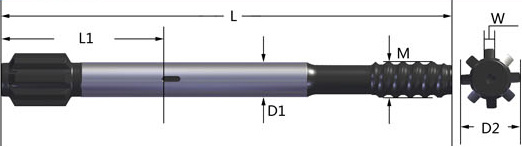

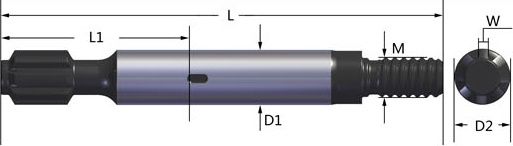

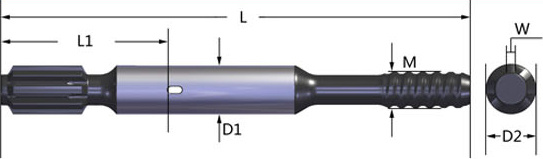

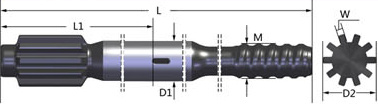

| 螺纹 (未注为M) | 长度 （L）mm | 配水套直 径(D1)mm | 水孔位 置L1mm | 花键直径 (D2)mm | 花键宽度 (W)mm | |
| LHS产品型号 QW16-460T38 | ||||||
 | T38 | 460 | φ37.85 | 197 | 58.7 | 10*8个 |
| 配套机型 | ||||||
| Tamrock HL500S-38/510S-38 | ||||||
| LHS产品型号 QW28-500T38 | ||||||
 | T38 | 500 | φ45 | 196 | 58.7 | 10*8个 |
| 配套机型 | ||||||
| Tamrock HL 500-45/HL510-45,HL 550 SUPER/HL560 SUPER/HL510 S-45 | ||||||
| LHS产品型号 Qw34-635ST58 | ||||||
 | ST58 | 635 | φ79.7 | 270 | 79 | 14*8个 |
| 配套机型 | ||||||
| Tamrock HL1000/HL 1000S-80, HL1000-80/HL1010-80 | ||||||
| LHS产品型号 QW34-670T51 | ||||||
 | T51 | 670 | φ51.8 | 240 | 79 | 14*8个 |
| 配套机型 | ||||||
| Tamrock HL1000/HL 1010, HL1000S/HL 1010S-52 | ||||||
| LHS产品型号 QW59-600T45 | ||||||
 | T45 | 600 | φ52 | 230 | 69 | 13*8个 |
| 配套机型 | ||||||
| Tamrock HL700/HL710-52/HL710PE-52/HL700LH/HL710S-52/HL710SPE-52 /T45/HL650-52/HL800T-52/HL800T/PE-52/HL810T-52/HF810T-52 | ||||||
| LHS产品型号 QW75-760EL60 | ||||||
 | ET60 | 760 | φ79.7 | 272 | 79 | 14*8个 |
| 配套机型 | ||||||
| Tamrock HL1500-80 | ||||||
| LHS产品型号 QW84-760T51 | ||||||
 | T51 | 760 | φ65 | 302 | 79 | 14*8个 |
| 配套机型 | ||||||
| Tamrock HL1000PE/HL1500PE/HL1560T/RD1635CF | ||||||
| LHS产品型号 QW125-525T38 | ||||||
 | T38 | 525 | φ45 | 213 | 58.8 | 8*10个 |
| 配套机型 | ||||||
| Tamrock RD525 | ||||||
